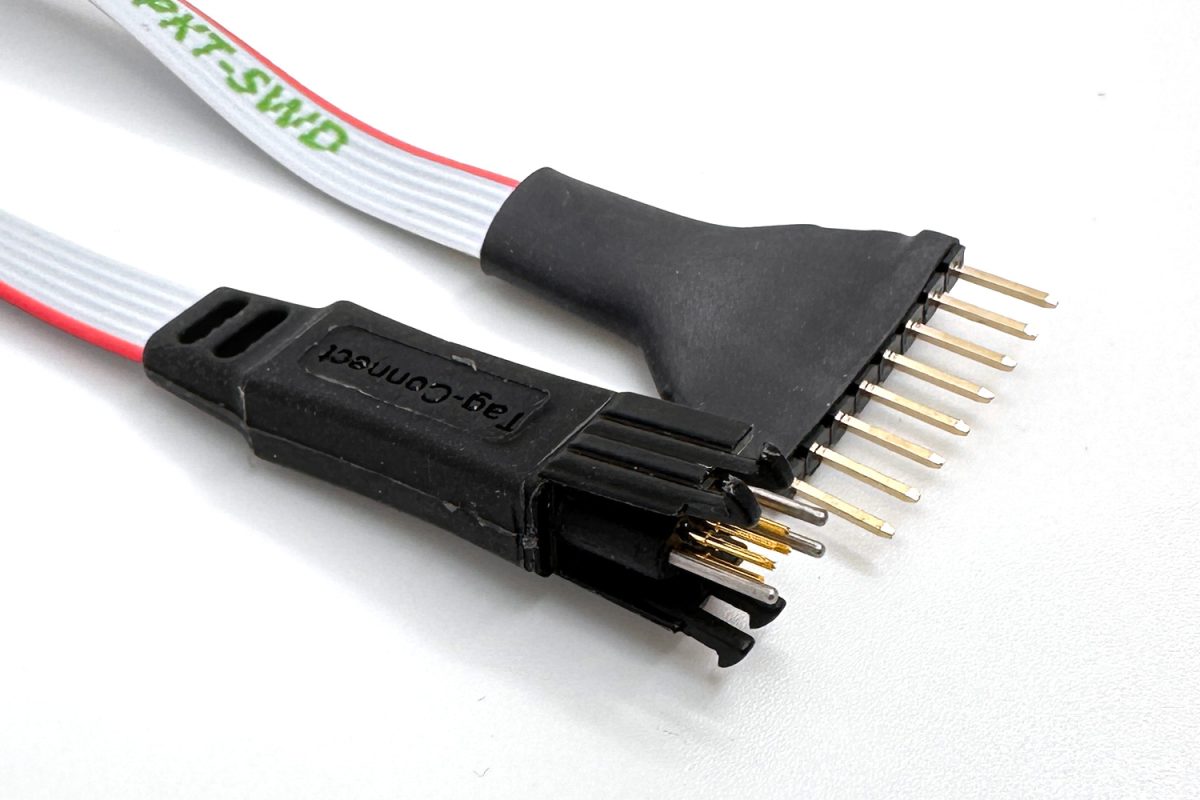

TC2030-PKT-SWD 6-Pin Cable with legs for Microchip PICkit 4/5 & SNAP SAM
$43.00
6 pin “legged” plug-of-nails™ for both debugging and production programming of SAM ARM Cortex MCUs using the Microchip PICkit 4/5 or SNAP in-circuit debuggers.
Note: Not for Microchip PIC MCUs – see below.
AVAILABLE
Description
Ideal for both debugging and production programming of SAM ARM Cortex MCUs using the Microchip PICkit 4/5 or SNAP in-circuit debuggers, the 6 pin plug-of-nails™ cable terminates in a 8 pin 0.1″ male SIP strip for connection to the debugger. This is similar to the TC2030-PKT cable but has an 8 pin SIP connector rather than 6 pin, as required when using the PICkit 4 or SNAP debugger for SAM MCU programming and/or debugging. The target board pin connections on the plug-of-nails™ connector are the same as on our TC2030-CTX ARM Cortex cable.
Note: This cable is only for SWD debugging of SAM ARM Cortex MCUs. For suitable Microchip PIC cables see here.
| Signal | SNAP/PICkit 4 | TC2030 CTX 6-pin |
|---|---|---|
| NMCLR/RESET | 1 | 3 |
| VDD VIOREF | 2 | 1 |
| GND | 3 | 5 |
| SWO | 4 | 6 |
| SWCLK | 5 | 4 |
| SWDIO | 8 | 2 |
Tag-Connect TC2030-PKT-SWD programming/debugging cable is primarily intended for use in development environments but is also ideal for production programming. The spring-loaded contact pins are held firmly in place by four plastic legs each of which clips securely into its own locating hole.
Tag-Connect TC2030-PKT-SWD is ideal where you need to maintain a connection to the PCB for an extended period such as when performing testing or development work.
See also TC2030-PKT-SWD-NL for applications where an even smaller footprint is required.
This product is used in the following debugger/device solutions:
This product is used as part of the following solutions for particular debuggers, protocols and devices. Solutions may involve additional cables, adapters or retaining clips, as well as this product you are viewing now. Click on the solution links to see full solutions and installation instructions where applicable.
Microchip PICkit 4/SNAP for SAM (ARM Cortex) using SWD
